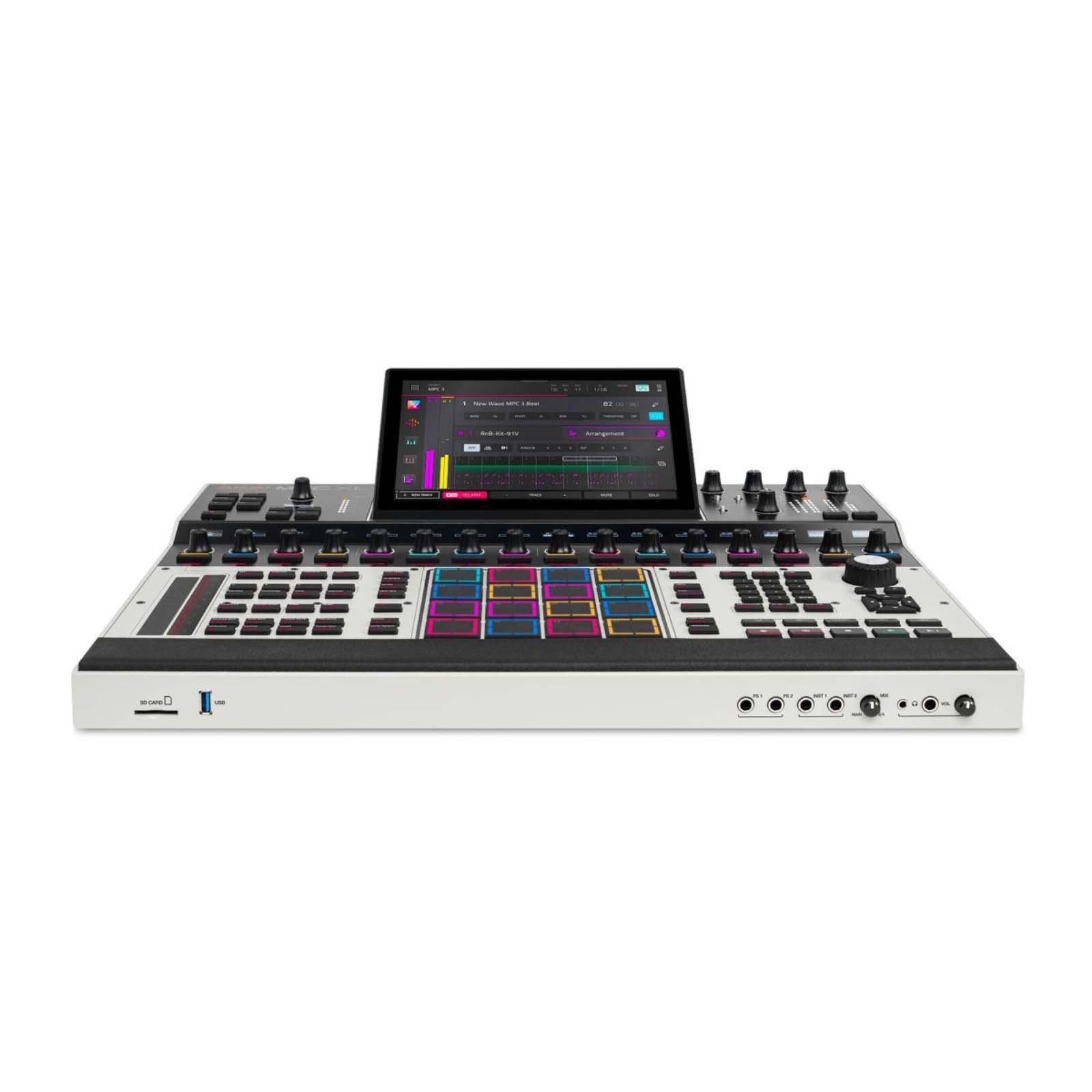

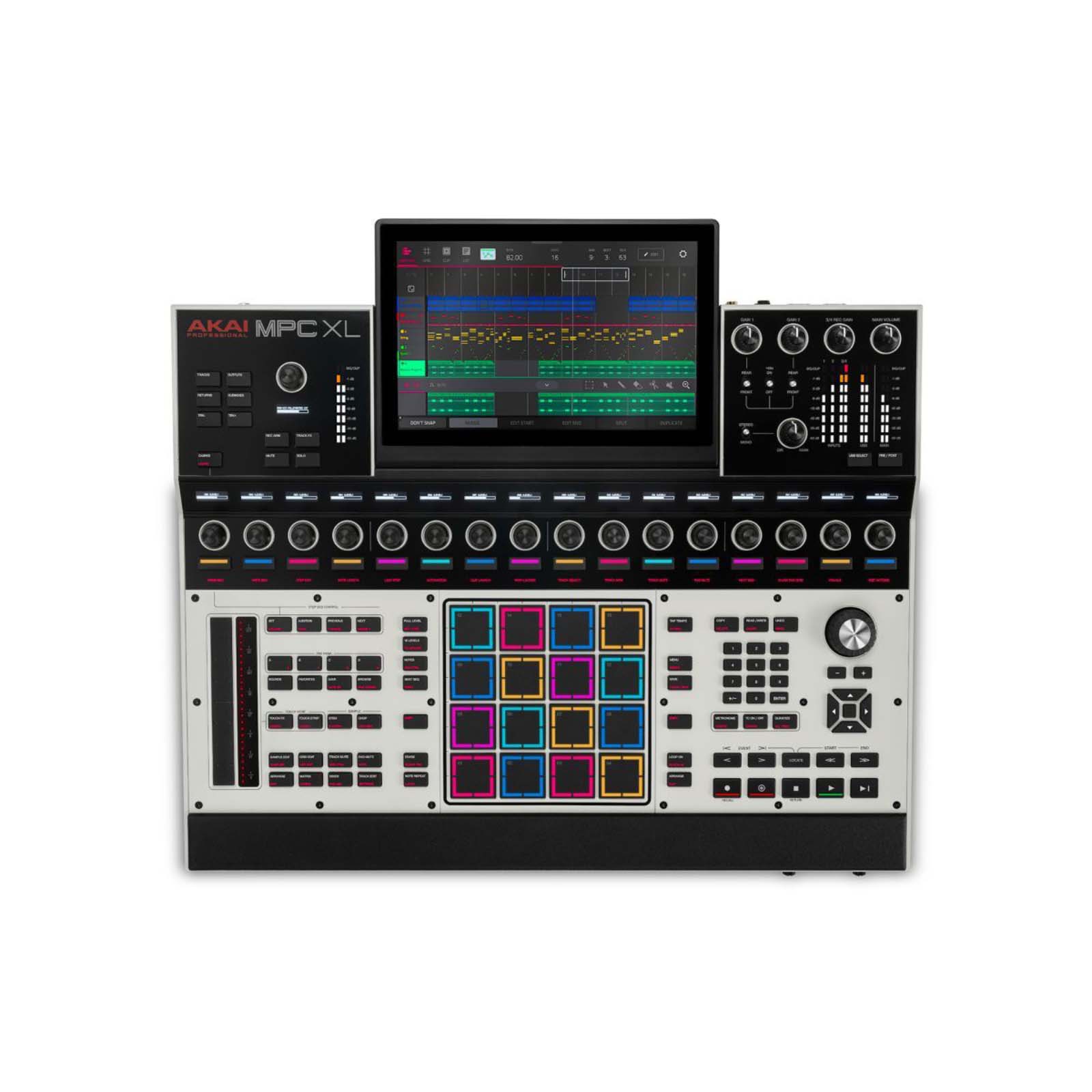

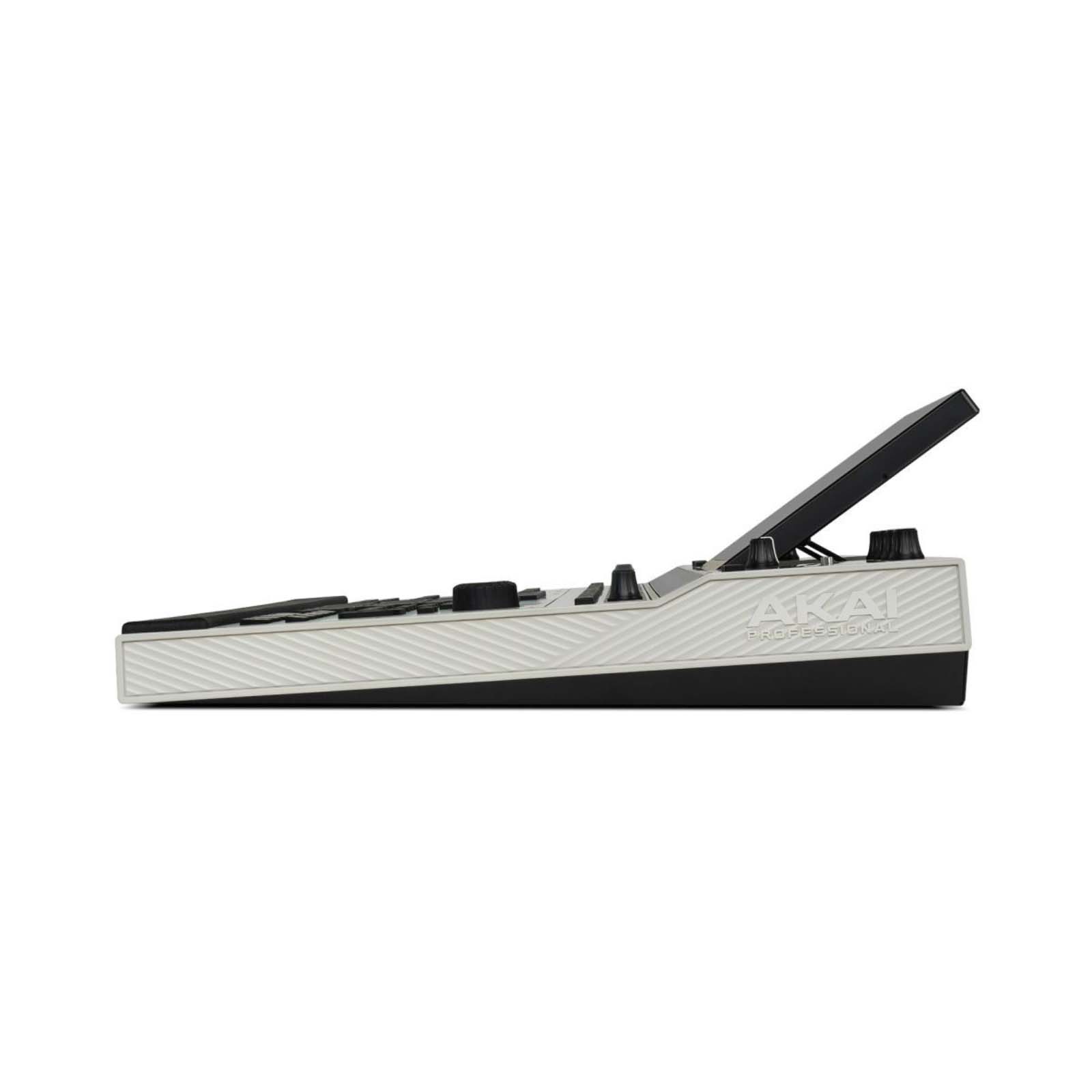

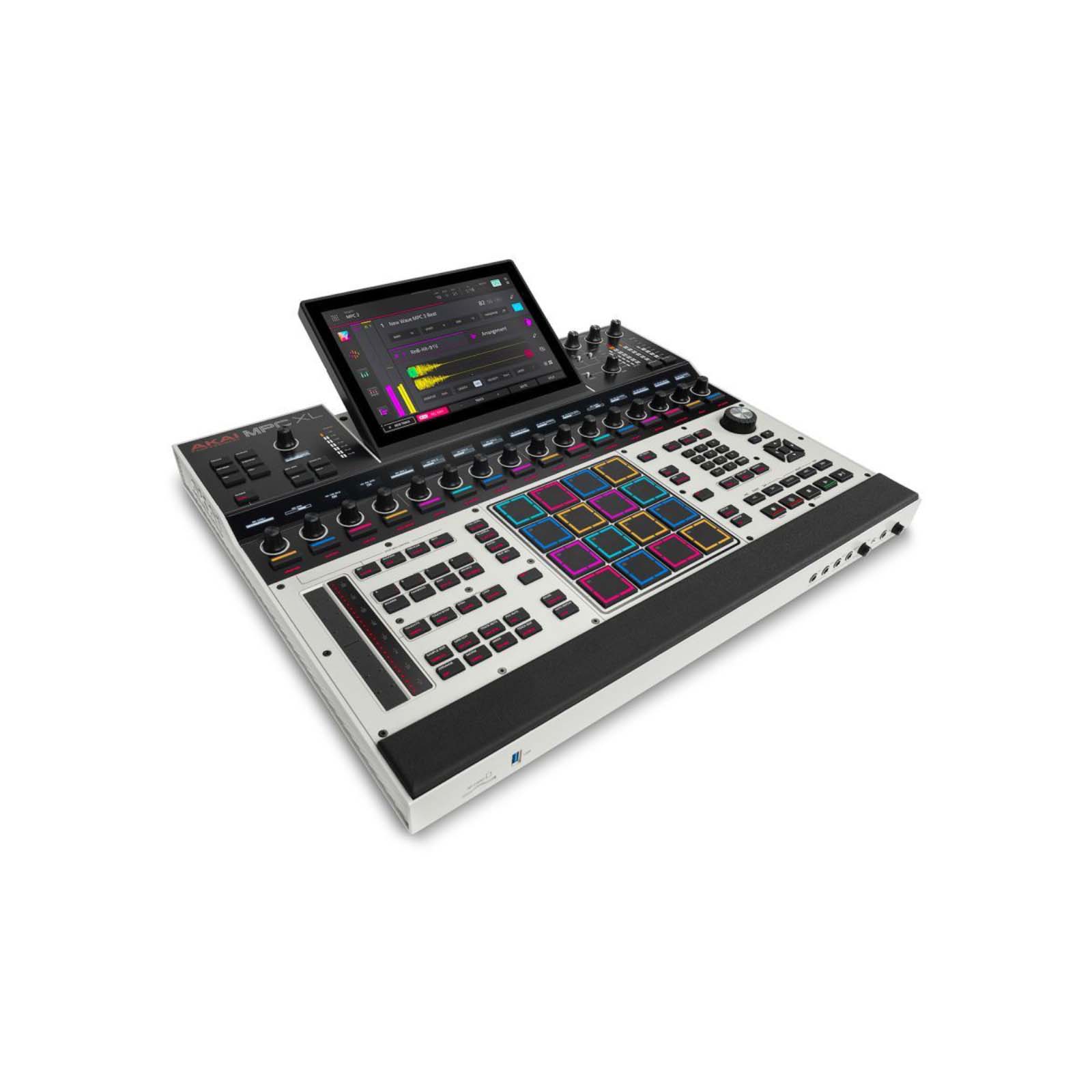

Standalone Music Production Center

• 2nd-generation 8-core processor

• 10.1" multi-touch display with adjustable viewing angle

• 16 GB RAM and 256 GB internal storage

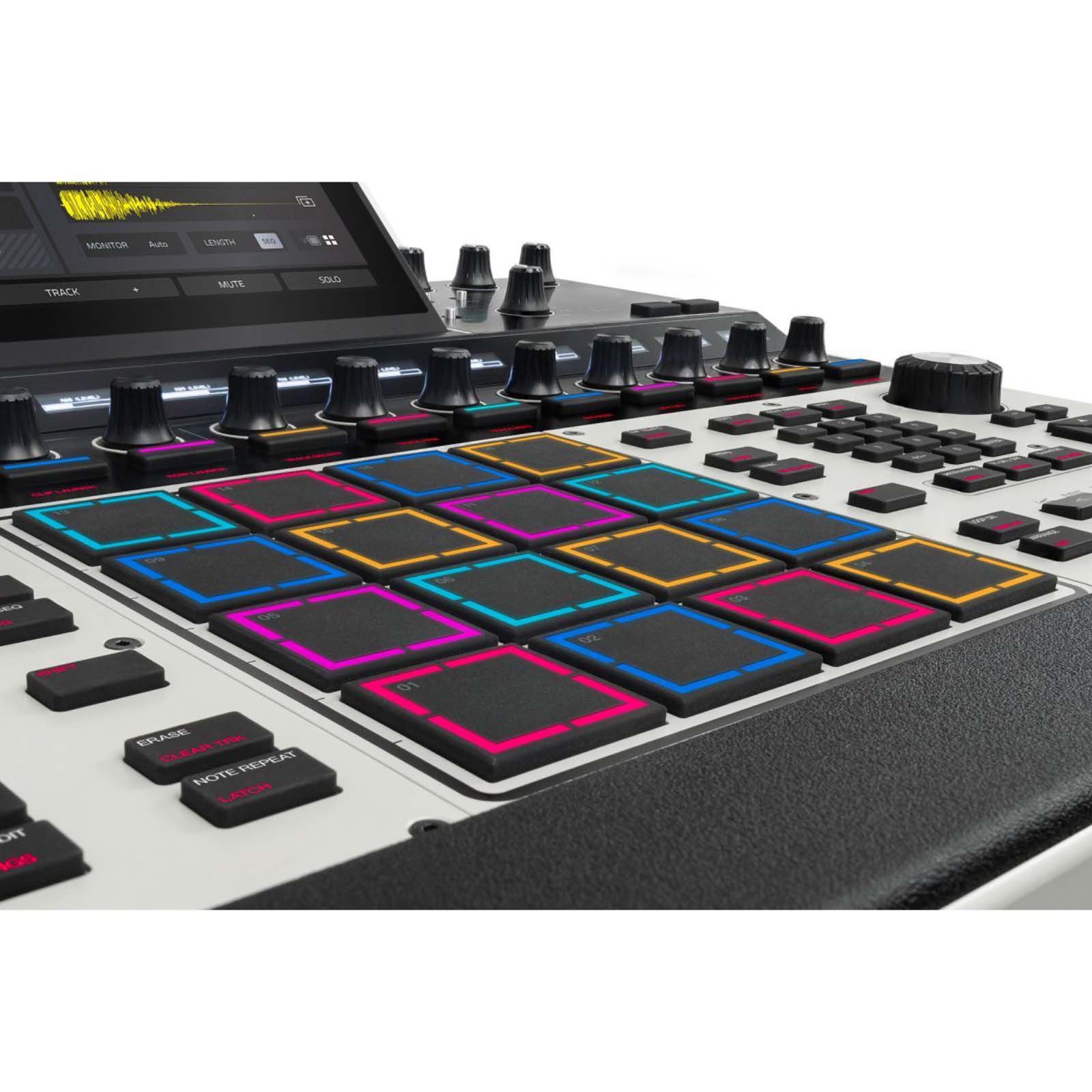

• 16 velocity-sensitive RGB pads with new 3D sensor technology

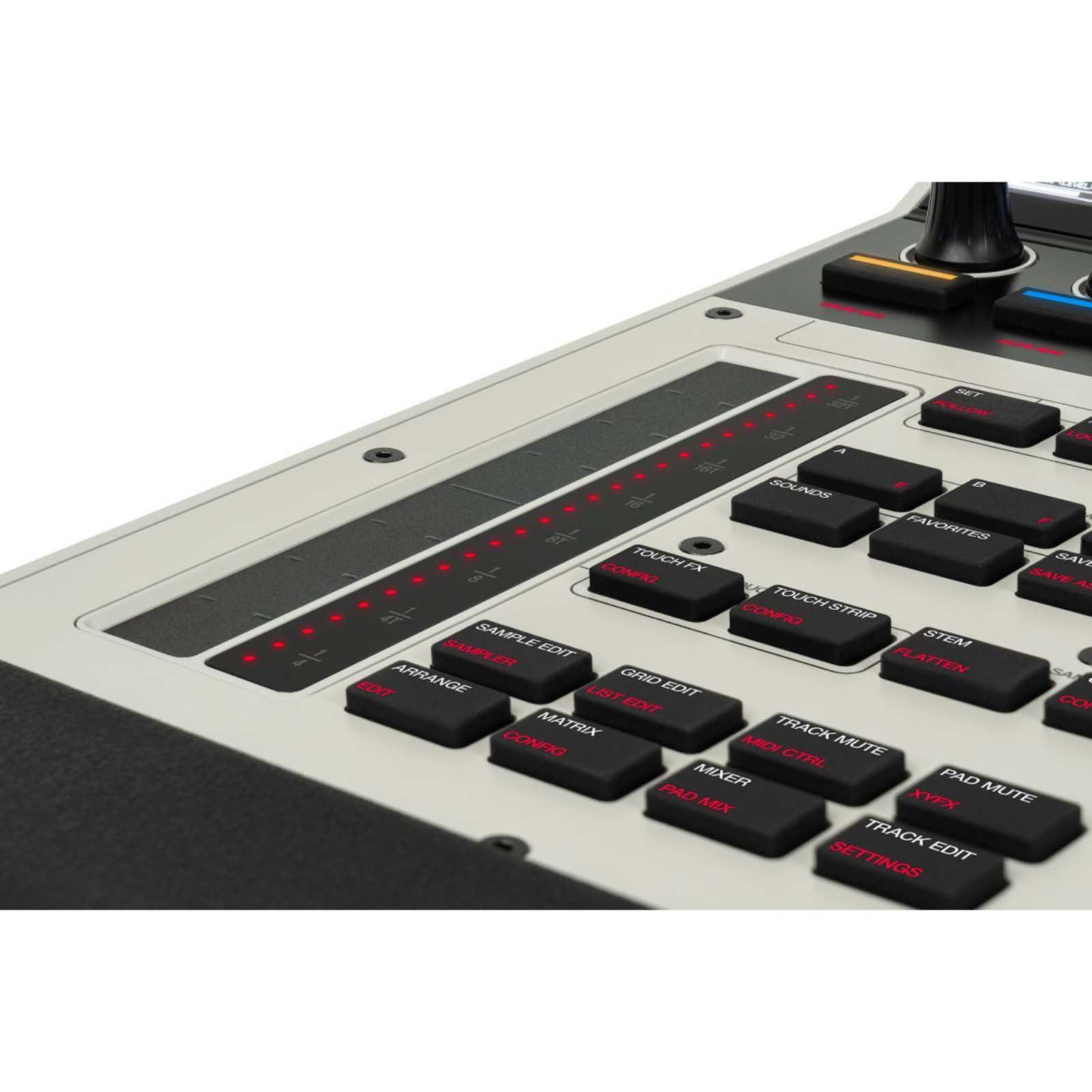

• Assignable touch-strip controller

• 16 Q-Link encoders with OLED display

• 16 buttons with RGB illumination

• Up to 32 plug-in instruments

• 16 audio tracks and 256 sampling voices available simultaneously

• 3 USB-A ports for USB mass storage or MIDI controllers

• SD card slot

• USB-C port for connection to Mac, PC, iOS and Android (including audio sampling from smart devices and up to 24 channels in/out with DAW)

• 16 CV/Gate outputs: 4 × 3.5 mm TRS

• 2 MIDI inputs and 4 MIDI outputs: 5-pin DIN

• 2 line/microphone inputs: XLR/TRS combo jack with switchable phantom power (+48 V)

• 2 line inputs: 6.3 mm jack / RCA, switchable to phono

• 2 instrument inputs: 6.3 mm jack

• 2 headphone outputs: 3.5 mm and 6.3 mm jack

• 8 line outputs: 6.3 mm jack

• Dimensions (W × D × H): 488 × 543 × 94 mm

• Weight: 7.2 kg

• Includes power supply (19 V DC, 3.42 A)
