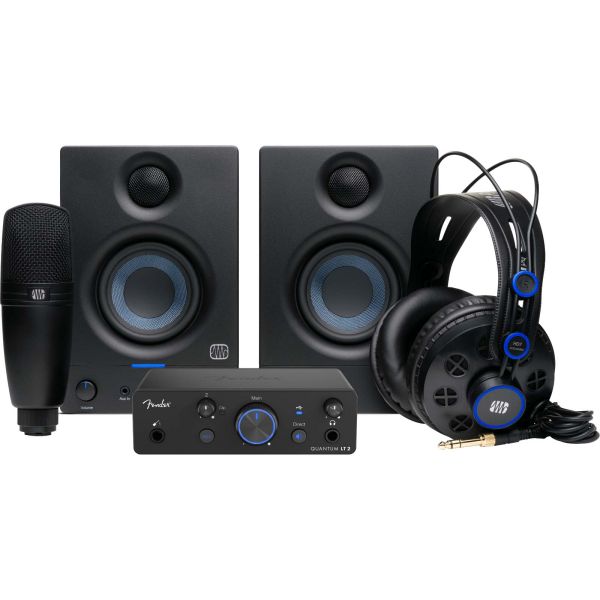

Recording Studio Set

• consisting of: Fender Quantum LT 2, Presonus Eris 3.5 2nd Gen active studio monitors, HD7 studio headphones, M7 large-diaphragm condenser microphone, and Fender Studio Pro Perpetual

Audio Interface Fender Quantum LT 2:

• 2x2 USB 2.0 audio interface with USB-C connection

• Conversion up to 24-bit / 192 kHz

• Control functions such as preamp gain and phantom power directly from Studio One or the Universal Control app

• 48 V phantom power

• Loopback function

• 1 MAX-HD preamp with 75 dB gain

• Zero-latency monitoring

• Standalone mixer mode

• 1 combo mic/line input (XLR/Jack)

• 1 front-panel instrument input

• 2 balanced TRS outputs

• Stereo headphone output

• Includes Fender Studio Pro Perpetual (download)

Active Studio Monitors Eris 3.5 2nd Generation:

• 3.5" woofer and 1" silk-dome tweeter

• Frequency range: 80 – 20,000 Hz

• Maximum SPL: 97 dB (@ 1 m)

• Switchable auto-standby

• Inputs: TRS (L/R, balanced), RCA pair (L/R)

• High and low EQ controls (±6 dB)

• Front-panel aux input (3.5 mm stereo mini-jack) for smartphones etc.

• Front-panel headphone output (3.5 mm stereo mini-jack)

• Front volume knob with power switch and status LED

Studio Headphones HD7:

• Over-ear design

• Precise deep-bass response

• Dynamic 50 mm neodymium drivers

• Frequency range: 10 – 30,000 Hz

• Impedance: 32 ohms

Large-Diaphragm Condenser Microphone M7:

• Polar pattern: cardioid

Frequency range: 40 – 18,000 Hz

• Sensitivity: -39 dBV/Pa (12.2 mV/Pa)

• Max SPL: 136 dB SPL

• Includes XLR cable
