16 x 22 Thunderbolt 3 Audio Interface

• 24-bit/192 kHz

• 6-core SHARC DSP for internal UAD real-time processing

• 2 Unison microphone preamps

• Auto-Gain function

• +48 V phantom power

• Pad

• Low-cut

• Phase reverse

• Monitor switching button

• Assignable function button for Dim or Mono

• LED metering

• Built-in Talkback microphone

• Supports surround formats up to 5.1 with speaker calibration and downmix

• Dual Crystal Clocking for a low-jitter environment and clean, artifact-free recordings as well as stable stereo imaging

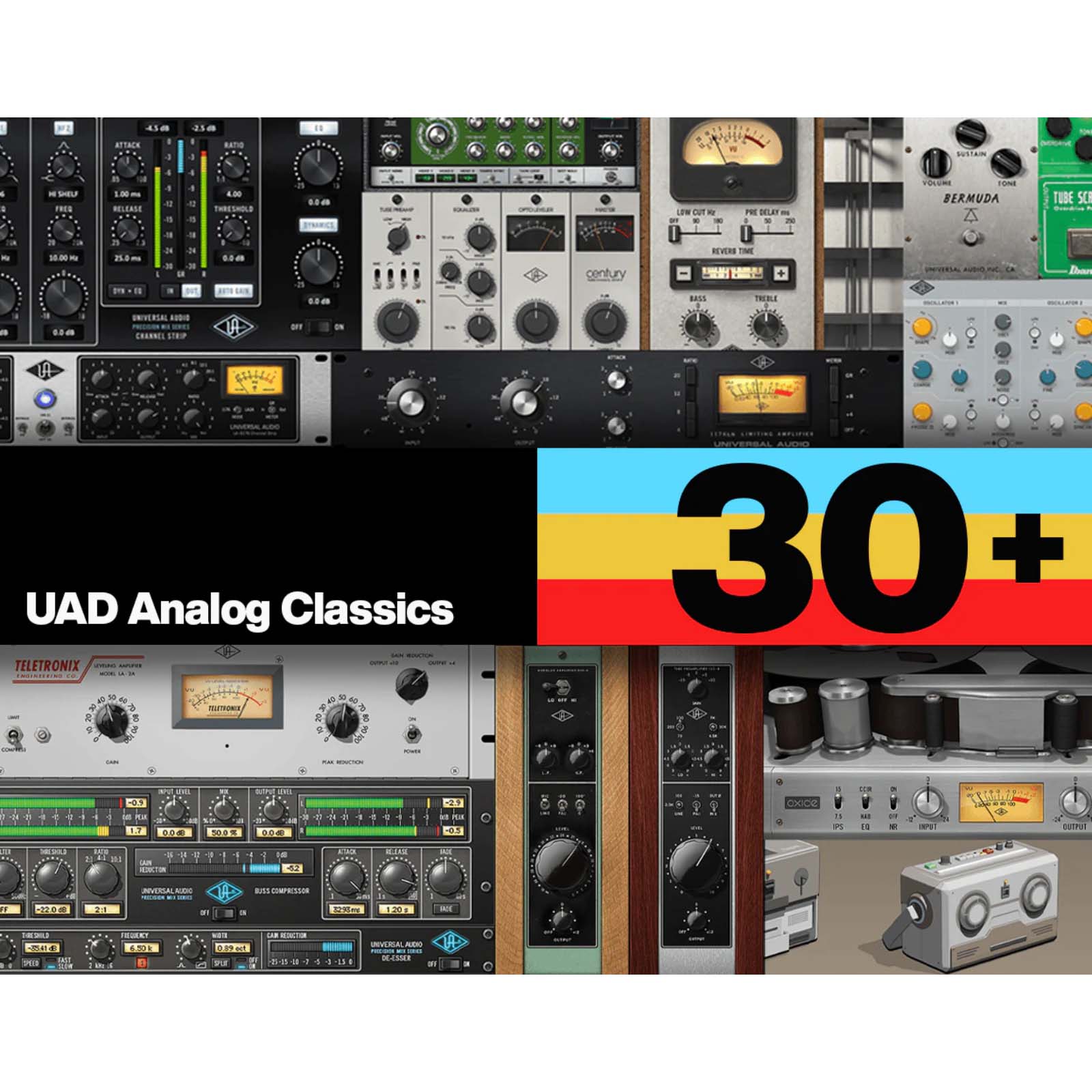

• Includes UAD Analog Classics Plugin Bundle for Mac/Windows

• Compatible with Thunderbolt 2 using an optional Thunderbolt 2 to 3 adapter (not included)

• Up to 4 Apollos with Thunderbolt connection can be cascaded

• Format: 19" / 1U

• Includes external power supply

Connections:

• 2 microphone inputs: XLR

• 2 Hi-Z inputs: 6.3 mm jack

• 6 line inputs: 6.3 mm jack

• 2 monitor outputs: 6.3 mm jack

• 6 line outputs: 6.3 mm jack

• S/PDIF input and output: coaxial

• 2 ADAT inputs and outputs

• Word Clock input and output: BNC

• 2 headphone outputs: 6.3 mm stereo jack

• 2 Thunderbolt 3 ports
