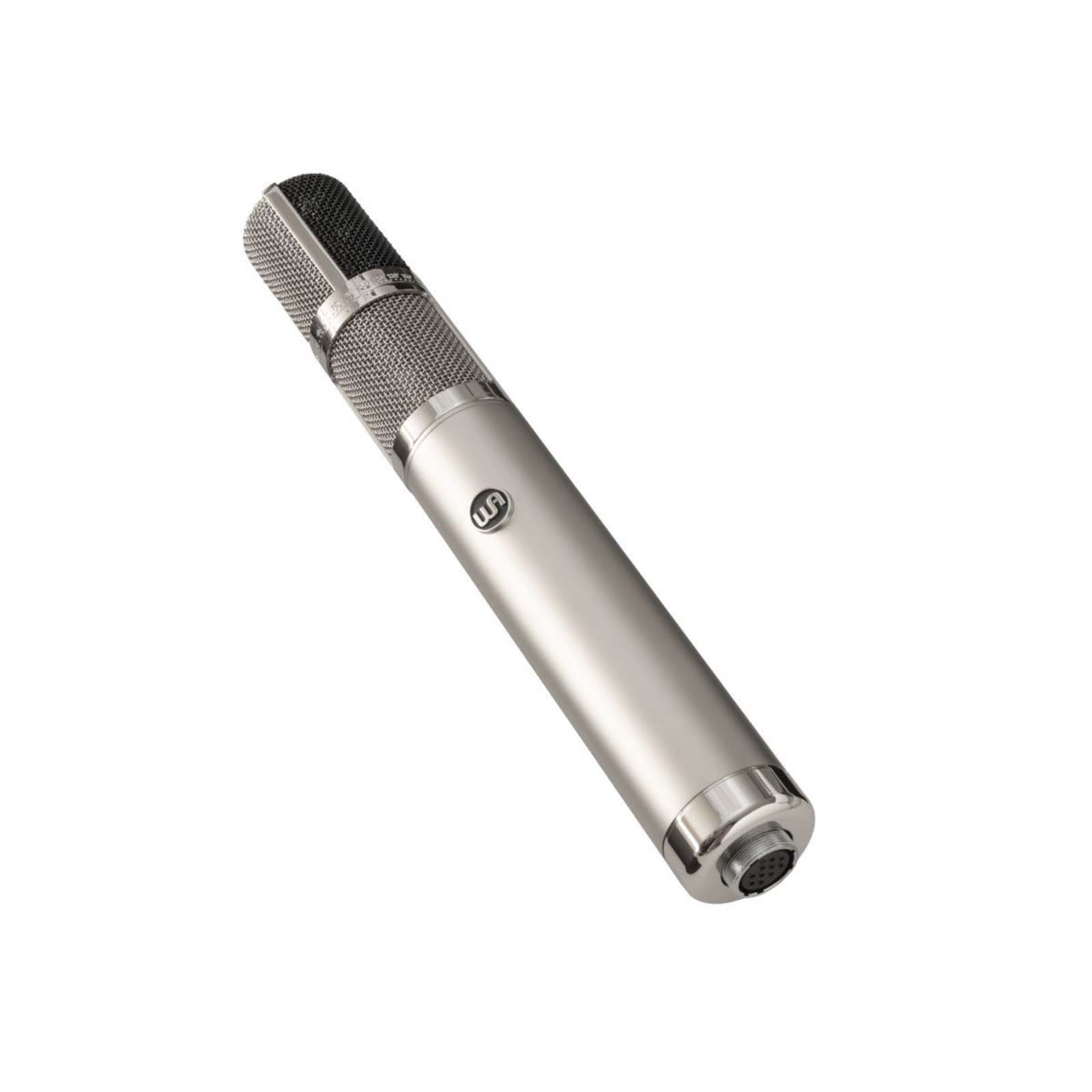

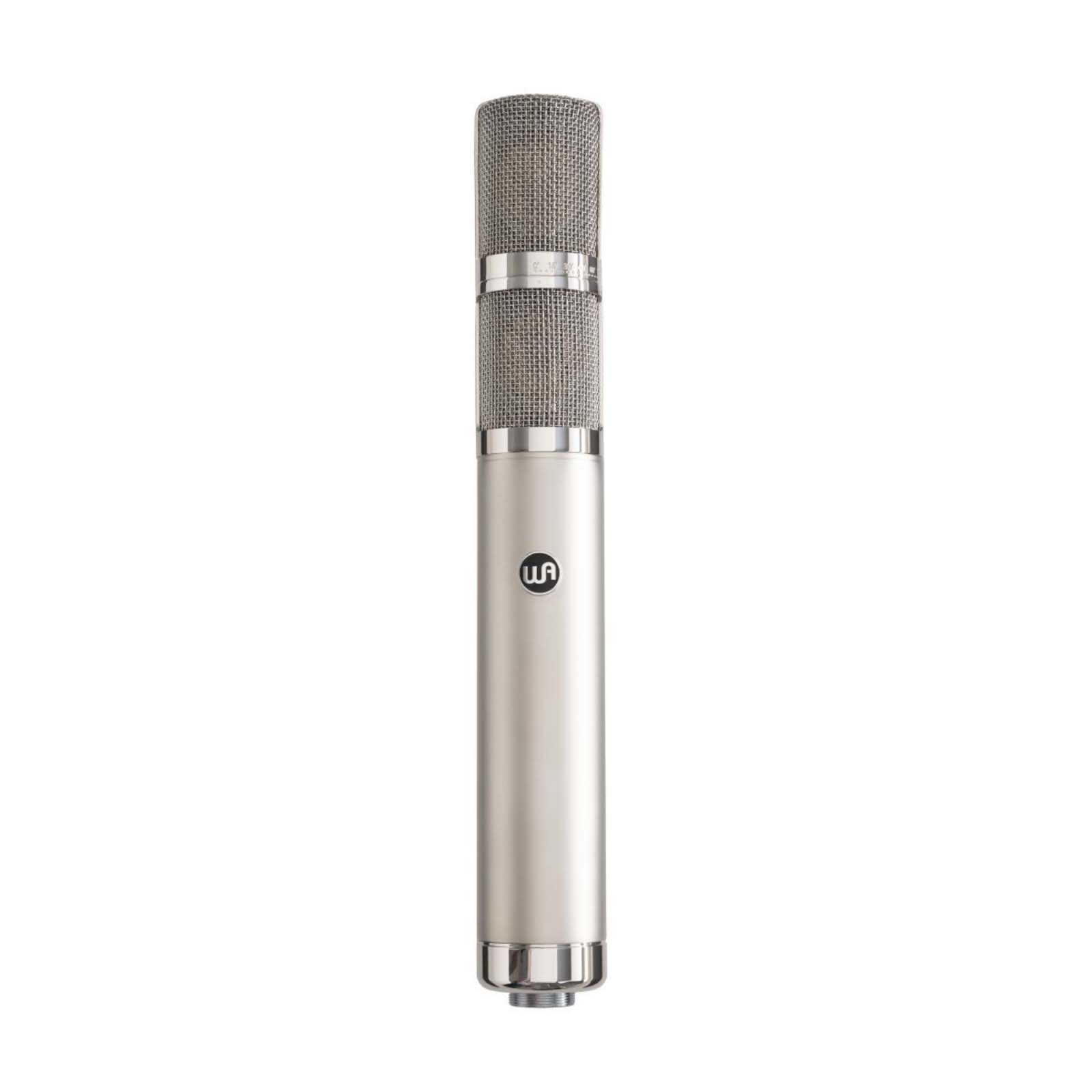

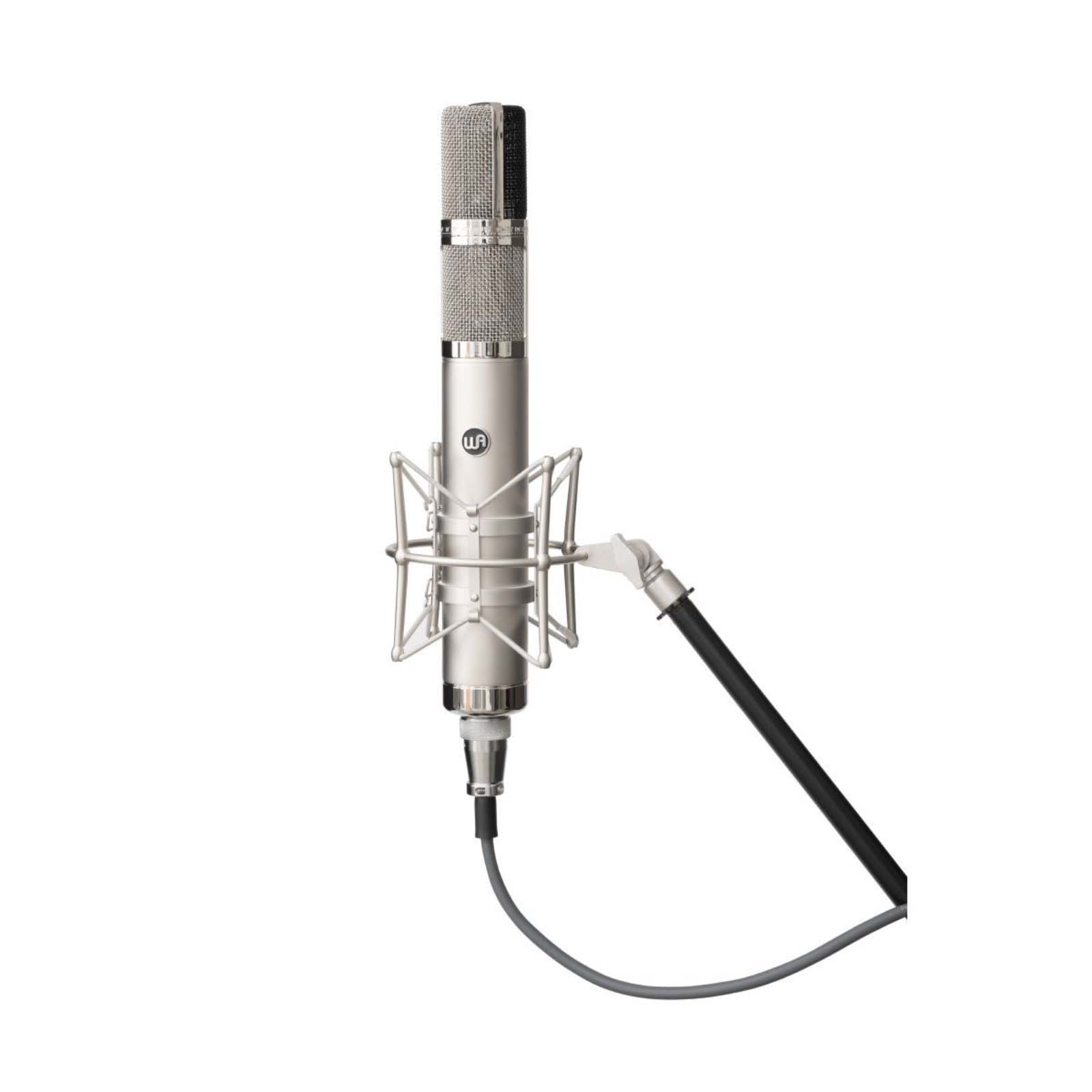

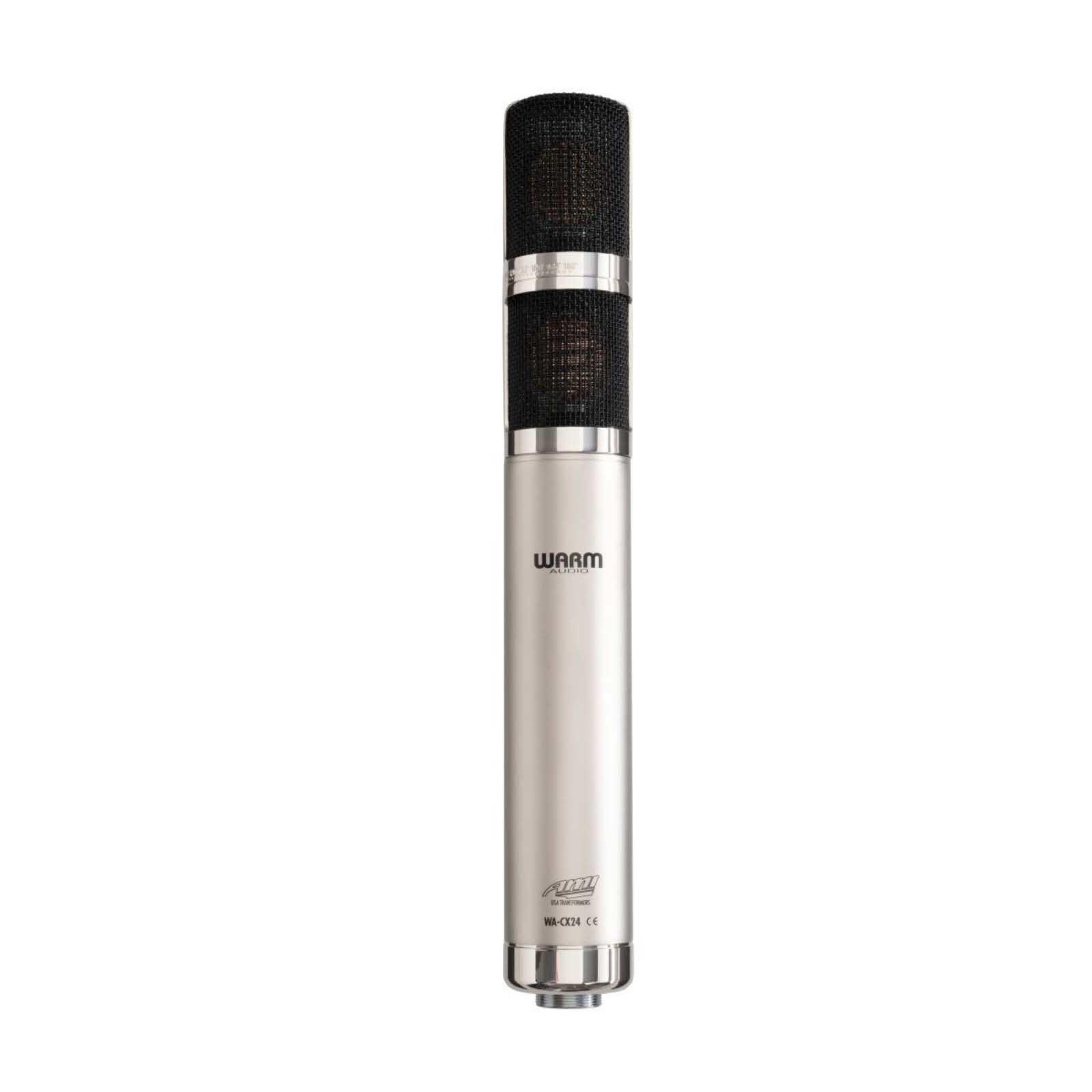

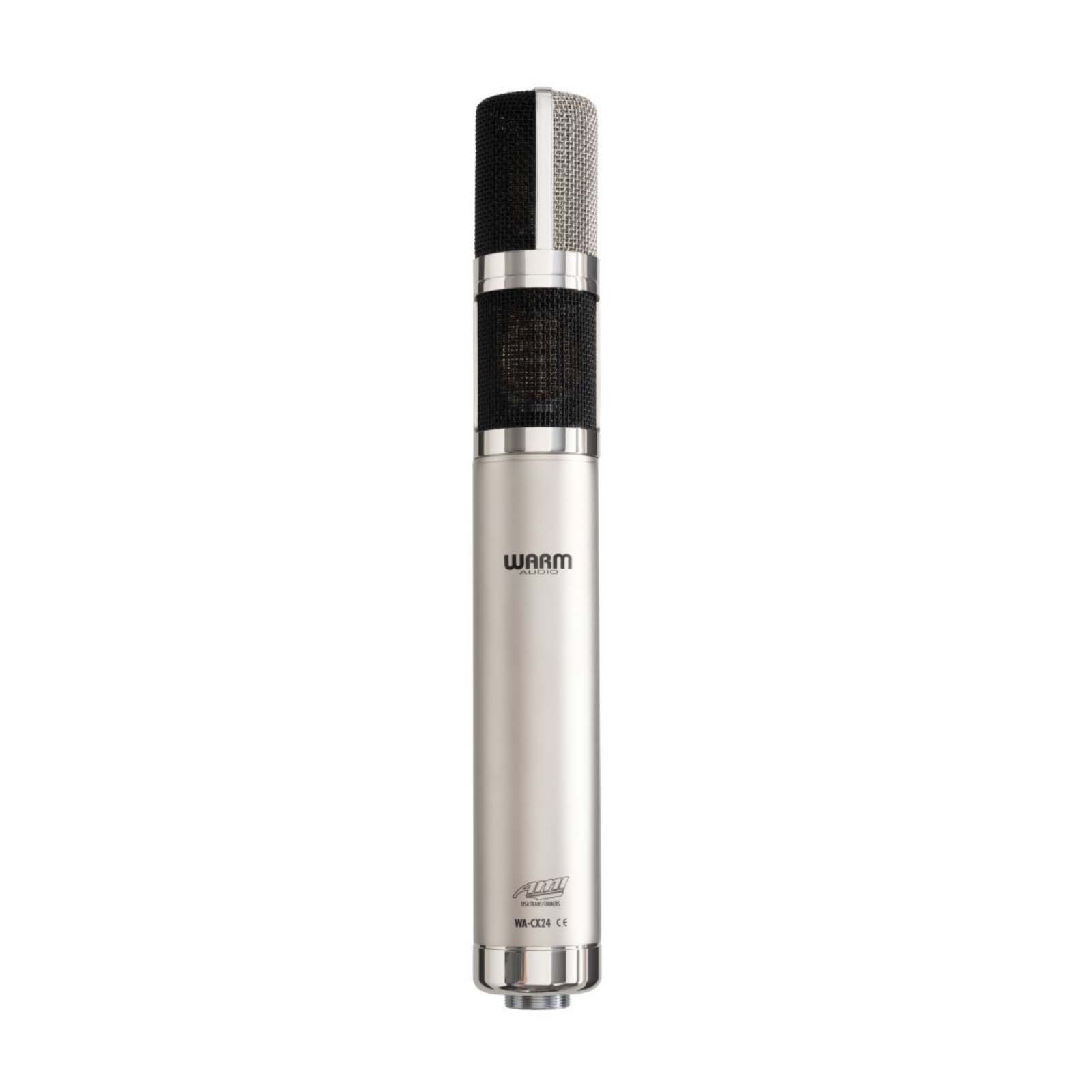

Stereo Tube Condenser Microphone

• 2 dual-diaphragm capsules based on the CK12 design

• upper capsule rotatable by 180 degrees

• polar pattern independently selectable for each capsule: cardioid, omnidirectional, figure-8, plus 6 additional intermediate settings

• various stereo configurations can be easily achieved

• 2 TAB-Funkenwerk (AMI) USA output transformers

• 12AY7 vacuum tube

• Max. SPL: 149 dB

• Frequency response: 30 - 20,000 Hz

• Output impedance: 200 Ohms

• Signal-to-noise ratio: 73 dB

• EIN / self-noise: 22 dBA

• Power supply via external IEC power supply

• Connection: 5 m 9-pin Gotham GAC-9 cable

• Microphone dimensions: 356 x 50 mm

• Microphone weight: 1.4 kg
