Zenmuse H20 Serie - Integrated maximum performance"H" For Hybrid
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

• 12 Megapixel Wide Camera

• 20 Megapixel Zoom Camera

• Radiometric Thermal Camera

• Laser RangeFinder

• IP44 Rating

• Operating Temperature -20° C to 50° C (-4 °F to 122 °F)

• Active Image Stabilization and EIS

• Night Scene Mode

All The Sensors You Need - In One
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

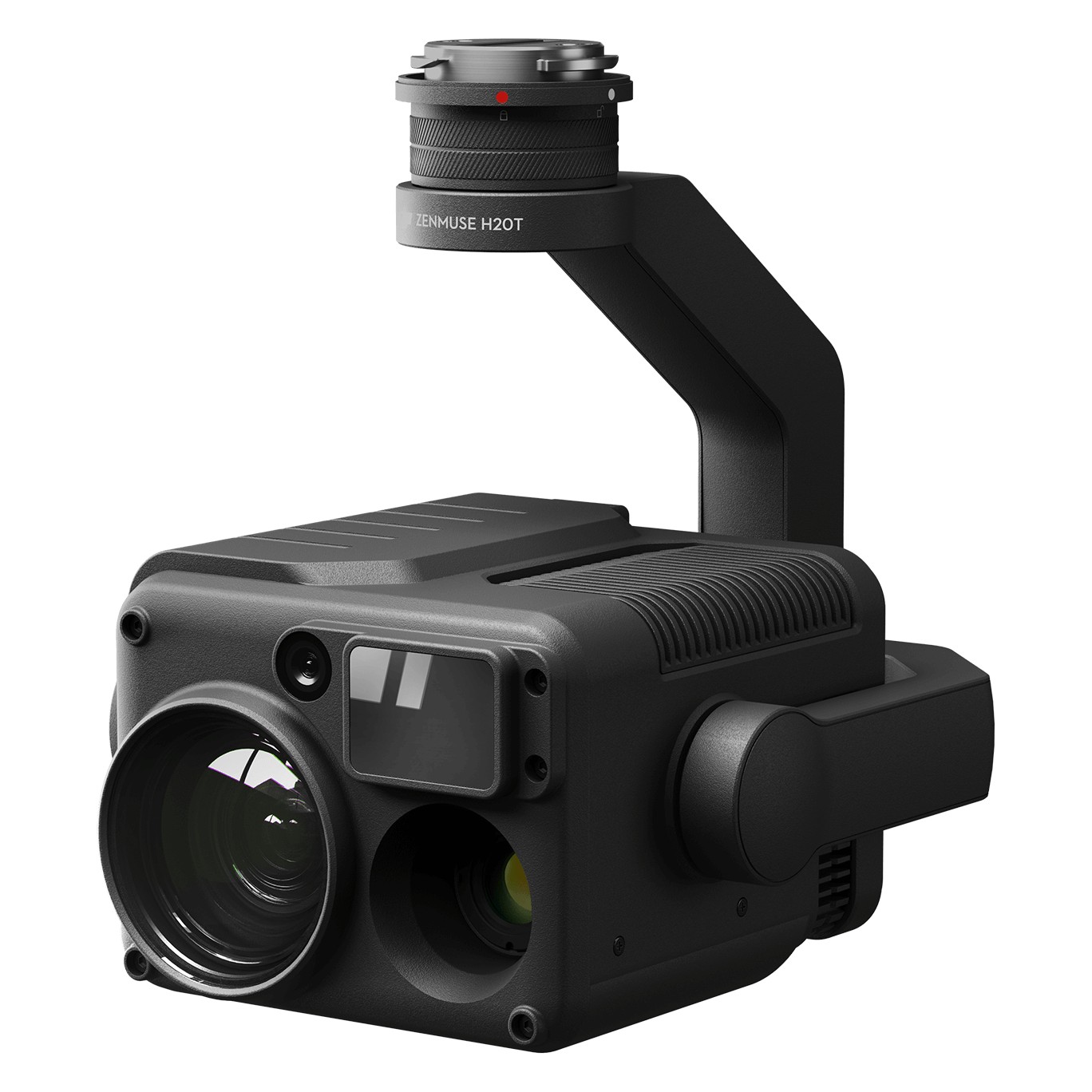

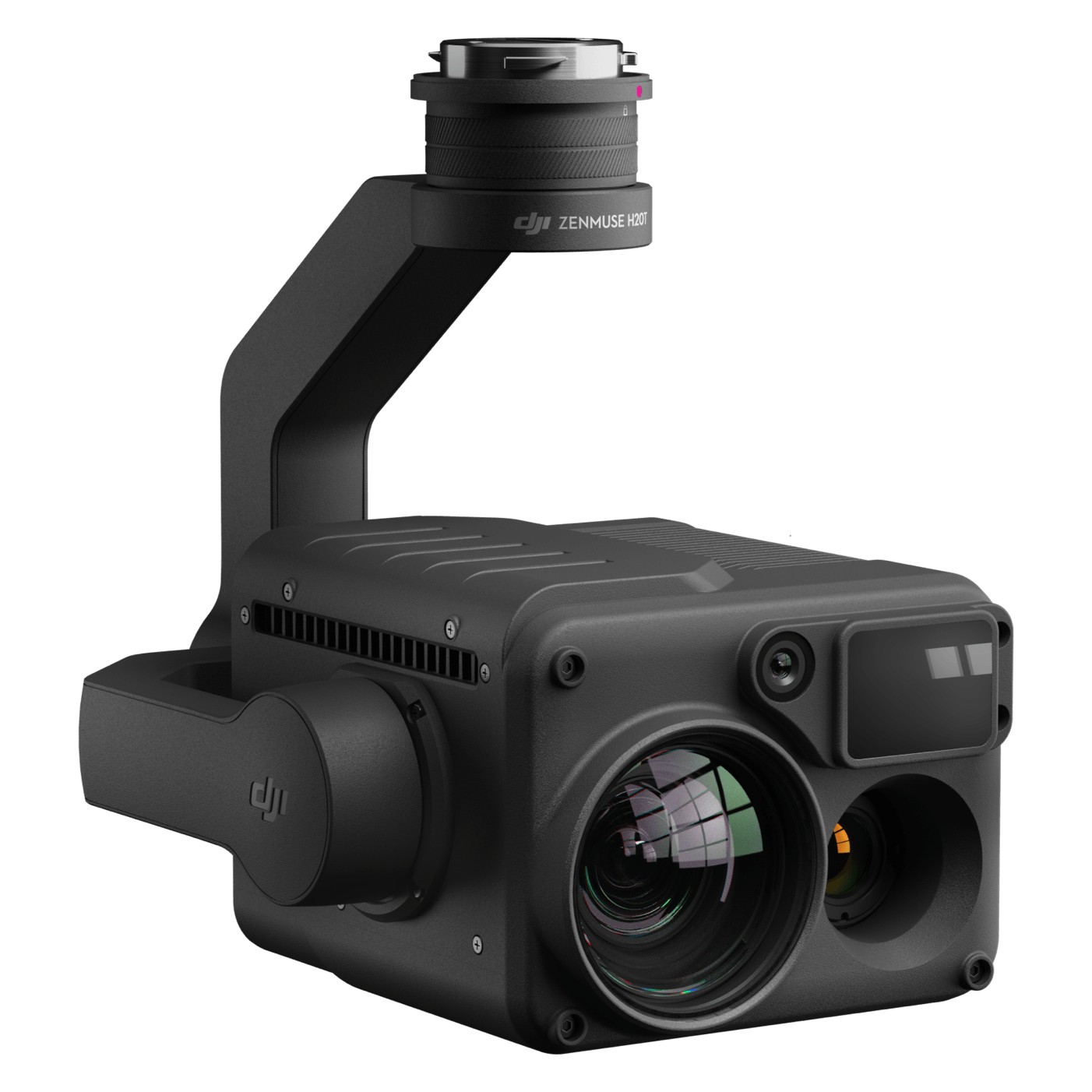

H20T - Quad-Sensor Solution

• 20 MP Zoom Camera

• 12 MP Wide Camera

• 1200 m Laser RangeFinder

• Radiometric Thermal Camera (640 × 512 Pixel)

Closing the Distance
Powerful Zoom Camera
23x Hybrid Optical Zoom, 200x Max. Zoom
20 Megapixel 1/1.7" CMOS Sensor
Video resolution: 4K at 30fps

Everything in View
Wide Camera
35 mm equivalent Focal Length: 24 mm 82,9°
12 Megapixel 1/2.3“ CMOS Sensor

Precise Distance Data
Laser RangeFinder
Range: 3 m – 1200 m
Accuracy: ± (0.2 m + D × 0.15%)

See the Unseen
Radiometric Thermal Camera
DFOV: 40.6°
Resolution: 640 × 512 Pixel, Frame Rate: 30 fps
Thermal Sensitivity: = 50 mk at f/1.0 (NEDT)

In the box:

1x DJI Zenmuse H20
1x Enterprise Shield Basic Service (paper print)
1x Hardcase
1x Lens cover
1x Gimbal port cover

The All-In-One Solution

Multi-Sensor Payloads
See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

Intelligent Ways to Collect Data

AI Spot-Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint (Precise Locating)
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track - Stay On Target
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Visualize Temperatures Immediately

Accurate Temperature Measurement
Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

Spot Meter
Tap a point to get a real-time reading of the surface temperature.

Area Measurement
Select an area to view the lowest, highest, and average temperatures.

Intelligent Features

Temp Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms
Visualize a specific band of temperatures to find what is important.

Color Palettes
Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

The Optimal Match for The Matrice 300 RTK

Applications

Firefighting
Fighht fires and save lives without endangering personnel.

Search & Rescue
Act quickly to locate missing people and better plan rescue missions.

Law Enforcement
Quickly asses a situation and plan accordingly while improving officer and bystander safety.

Powerline Inspection
Easily visualize extensive power line networks in remote areas.

Oil & Gas
Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas.
